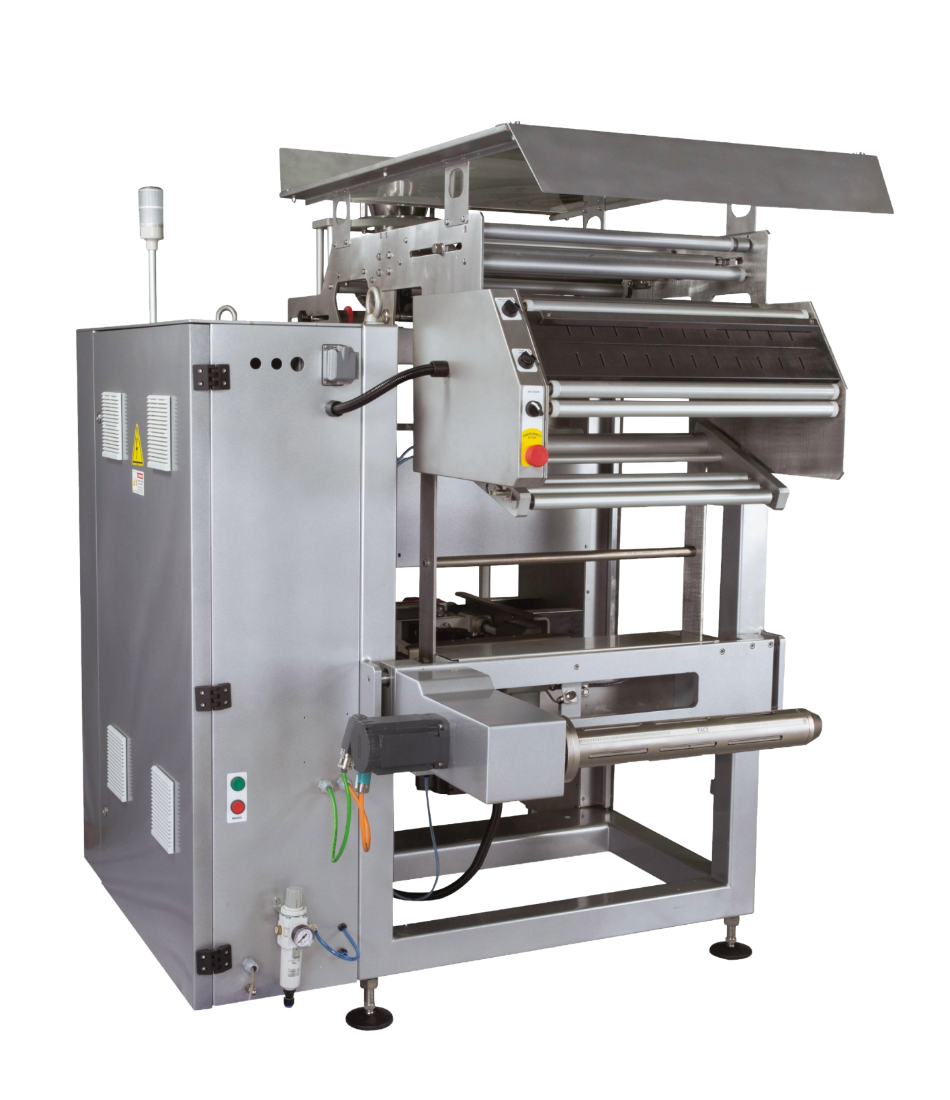

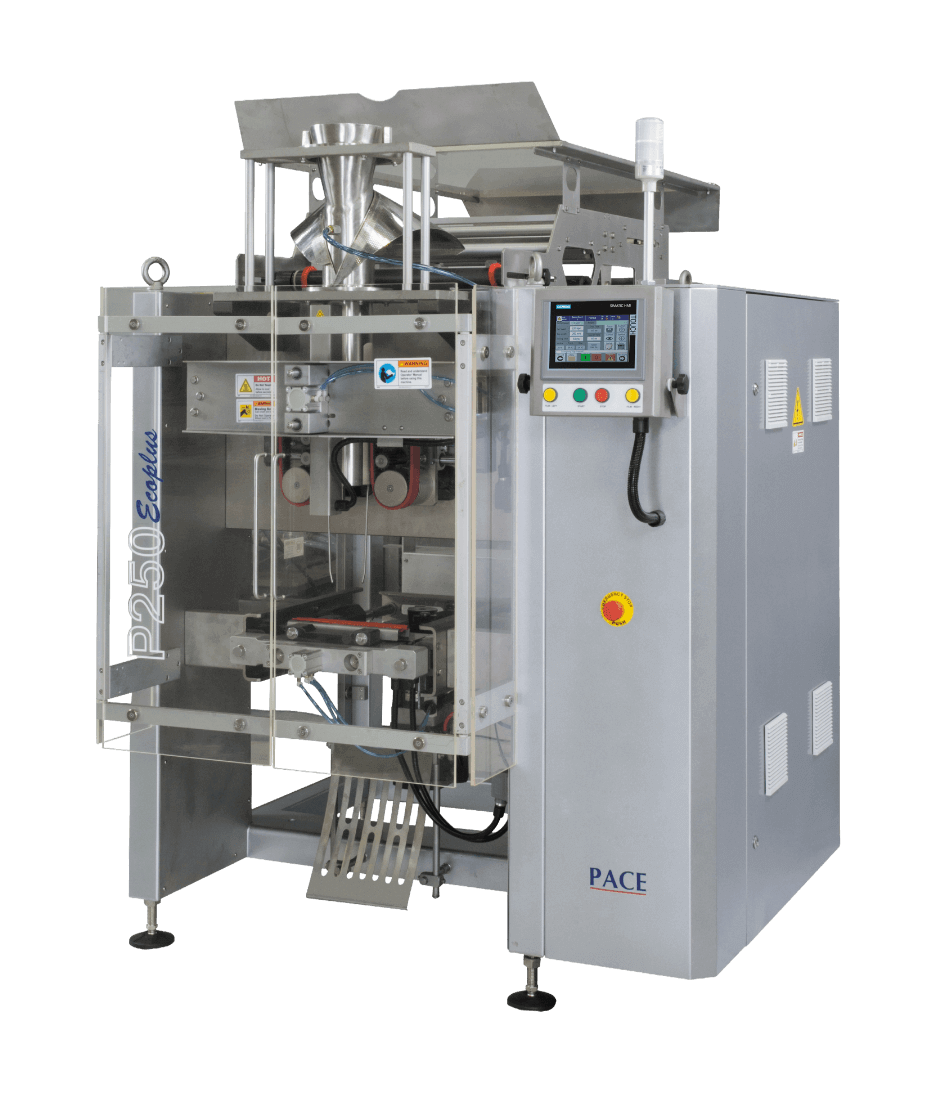

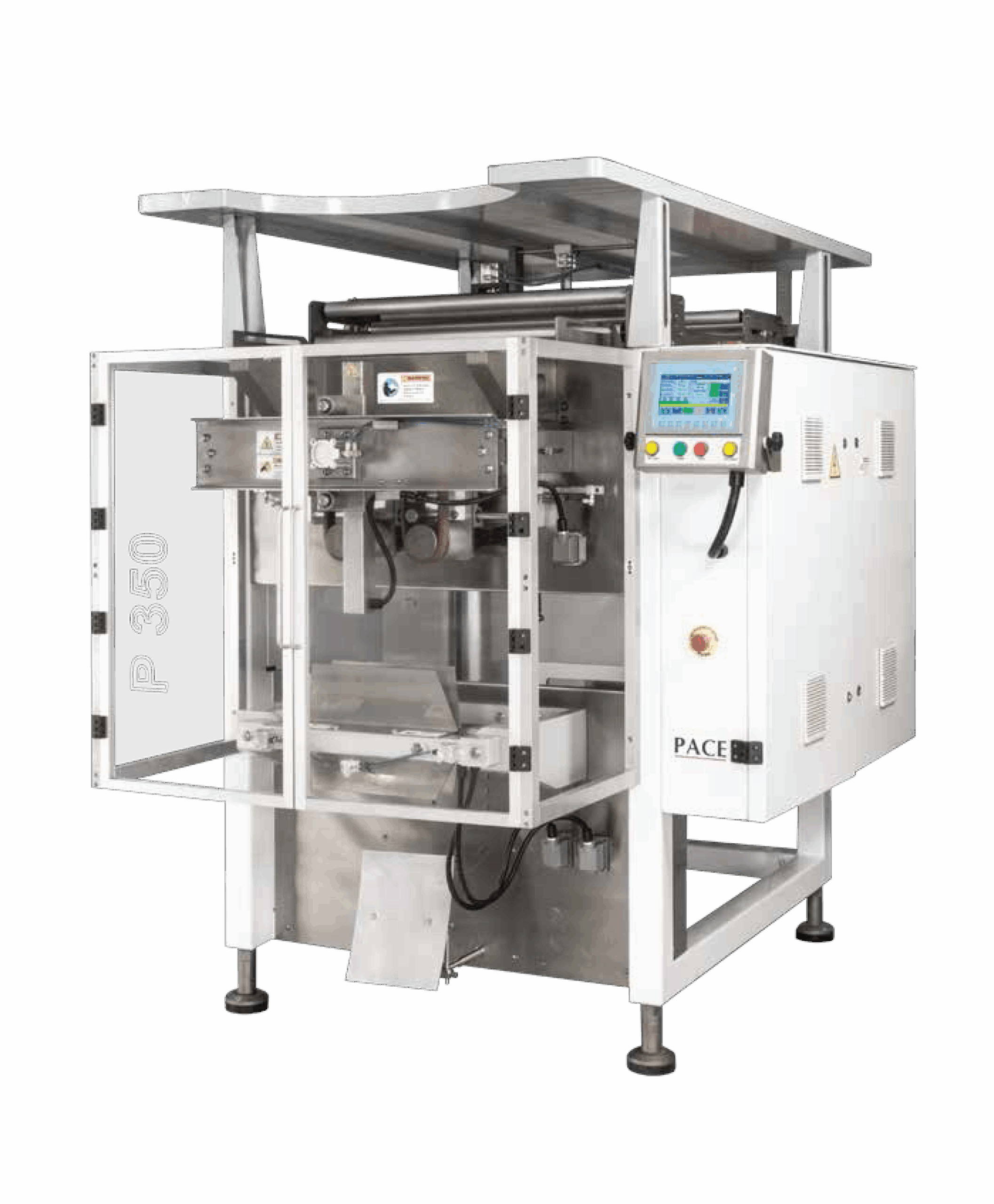

Ecoplus Series

High Speed Intermittent Motion VFFS

Ecoplus Series is a High Speed Intermittent Motion VFFS machine.

Feature list includes User Friendly HMI, Setable Sealing Time & Sealing Force for Cross Sealer, Product In Seal Detection, OEE Data, Audit Data, etc.

Suitable for Extruded Snacks, Namkeen, Pellets, Raw Pasta, Tea, Sugar, Lentils, Whole Spices, Seeds such as Maize, Cotton, Paddy, Corn, etc.

Send Inquiry
Ecoplus Series

Key Benefits

COMPACT & RUGGED STRUCTURE
  • Frame designed with strong, sturdy & precise components to ensure minimum vibration at optimum machine speed.
CONTROL SYSTEM
  • High End Motion CPU loaded with Intelligent and interactive software.
  • Multiple Machines can be connected through MIS / SCADA for remote monitoring.
OPERATOR INTERFACE (HMI)
  • Touch Controlled Color Display with User Friendly Graphical Interface
  • Save Up to 500 Recipe
  • OEE Data
REAL SEALING TIME & CONTROLLED SEAL FORCE
  • Sealing time remains constant at any given speed
  • Sealing Force can be adjusted to meet the sealing requirement of different laminate structures.
AIR & NITROGEN CONTROL PANEL
  • Separate Valve and Regulator for Intermittent and Continuous Nitrogen Purging. (Optional)
  • Low Pressure Detection system
  • Prevent Air Losses and ensure cut off of Air supply when Machine is in idle condition.
FORMING PARTS
  • Easy Changeover
  • Cross Welded Hopper with Forming Tube to Reduce the blockage

Types of Pouches

Pillow Bag
Gussetted Bag
Pillow With Euro Hole Bag

Applications

Snacks Packing

Confectionary Packing

Tea Packing

Nuts Packing

Pasta & Raw Pellet Packing

Cereals & Healthier foods Packing

Pet Foods Packing

Seeds Packing

Rice & Lentils Packing

Sugar Packing

Whole Spices Packing

Coffee Packing

Washing Powder Packing

Frozen Foods

Technical Specifications

Machine Specification P200 Ecoplus P250 Ecoplus P350 Ecoplus
Technology Intermittent Motion Intermittent Motion Intermittent Motion
Bag Width (Min. / Max.) 60-200 mm 60-250 mm 125-350 mm
Bag Length (Max.) 275 mm 350 mm 575 mm
Connecting Load 6 KW / Hr 6 KW / Hr 6 KW / Hr
Air Requirement 3 CFM @ 7 Bar 3 CFM @ 7 Bar 3 CFM @ 7 Bar
Maximum Film Reel Width 425 mm 525 mm 725 mm
Maximum Film Reel Diameter 450 mm 450 mm 450 mm
Core ID 76 mm 76 mm 76 mm
Maximum Machine Output UPTO 120 BPM UPTO 120 BPM UPTO 100 BPM
Maximum Machine Weight Approx. 900 Kg. 950 Kg. 1075 Kg.
Dimension L X W X H (mm) 1750 X 1200 X 1600 1840 X 1360 X 1920 2050 X 1550 X 2150
For more information about the 'Ecoplus Series', please contact us using the dedicated inquiry form. You can also download our catalogue for detailed specifications and product insights.
