3S Series - Pace Packaging
Arrow Icon
Arrow Icon

Medium Speed Intermittent Motion VFFS for packing upto 10kg

3S Series is a Medium Speed Intermittent Motion VFFS machine for weight from 500g to 10kg.

Feature list includes User Friendly HMI, Setable Sealing Time & Sealing Force for Cross Sealer, Product In Seal Detection, OEE Data, Audit Data, etc.

Suitable for Raw Pasta, Sugar, Lentils, Whole Spices, Seeds such as Maize, Cotton, Paddy, Corn, etc.

Send Inquiry
3S Series
COMPACT & RUGGED STRUCTURE
  • Frame designed with strong, sturdy & precise components to ensure minimum vibration at optimum machine speed.
OPERATOR INTERFACE (HMI)
  • Touch Controlled Color Display with User Friendly Graphical Interface
  • Save Up to 500 Recipe
FORMING PARTS
  • Easy Changeover
CONTROL SYSTEM (P350 S)
  • High End Motion CPU loaded with Intelligent and interactive software.
  • Multiple Machines can be connected through MIS / SCADA for remote monitoring.
CONTROL SYSTEM (P350)
  • PLC Controlled with Intelligent and interactive software.

Types of Pouches

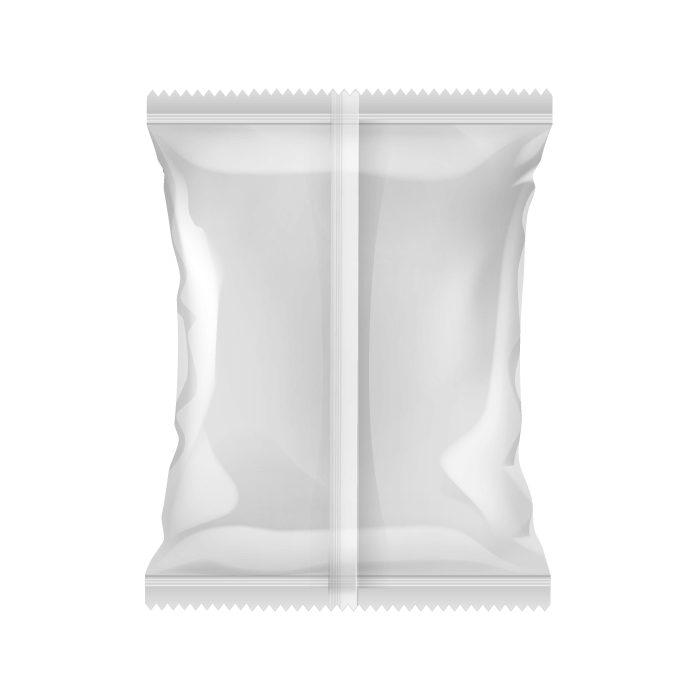

Center Sealed Pouch
Center Sealed Pouch

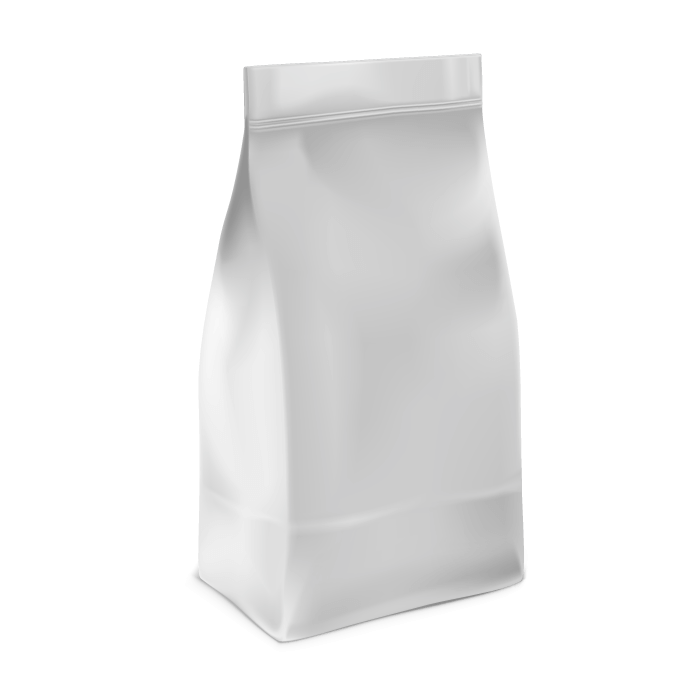

Gusseted Pouch Packaging
Gusseted Pouch Packaging

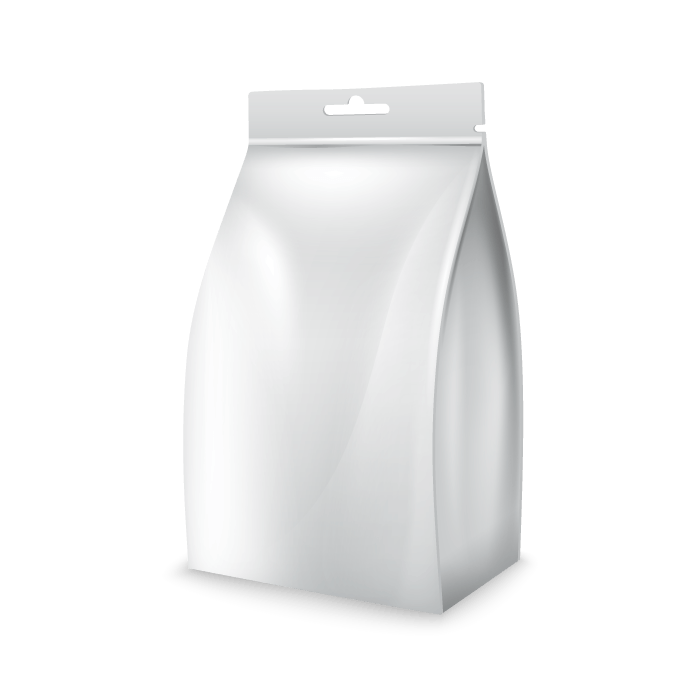

Euro Slot Pillow Pouch Packaging
Euro Slot Pillow Pouch Packaging

Technical Specifications

Machine SpecificationP350 SP350 (Pneumatic)
TechnologyIntermittent MotionIntermittent Motion
Bag Width (Min. / Max.)125-350 mm125-350 mm
Bag Length (Max.)575 mm575 mm
Connecting Load6 KW / Hr4 KW / Hr
Air Requirement3 CFM @ 7 Bar10 CFM @ 7 Bar
Maximum Film Reel Width725 mm725 mm
Maximum Film Reel Diameter450 mm450 mm
Core ID76 mm76 mm
Maximum Machine OutputUPTO 100 BPMUPTO 60 BPM
Maximum Machine Weight Approx.1075 Kg.1075 Kg.
Dimension L X W X H (mm)2050 X 1550 X 21502050 X 1550 X 2150
For more information about the '3S Series', please contact us using the dedicated inquiry form. You can also download our catalogue for detailed specifications and product insights.
